2SA2222SG
Bipolar Transistor

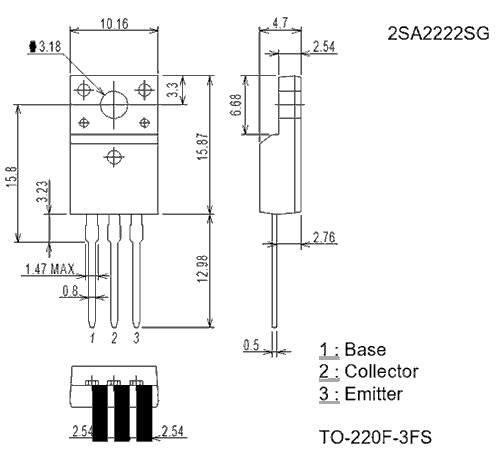

–50V, –10A, Low VCE(sat) PNP TO-220F-3FS
Applications
• Relay drivers, lamp drivers, motor drivers
Features
• Adoption of MBIT process • Large current capacity (IC=--10A)
• Low collector-to-emitter saturation voltage (VCE(sat)=--250mV(typ.))
• High-speed switching (tf=22ns(typ.))
Specifications
Absolute Maximum Ratings at Ta=25°C
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
|
Collector-to-Base Voltage |
VCBO |
--50 |
V |
|
|
Collector-to-Emitter Voltage |
VCEO |
--50 |
V |
|
|
Emitter-to-Base Voltage |
VEBO |
--6 |
V |
|
|
Collector Current |
IC |
--10 |
A |
|
|
Collector Current (Pulse) |
ICP |
--13 |
A |
|
|
Base Current |
IB |
--2 |
A |
|
|
Collector Dissipation |
PC |
Tc=25°C, PT≤1s |
25 |
W |
|
Junction Temperature |
Tj |
150 |
°C |
|
|
Storage Temperature |
Tstg |
--55 to +150 |
°C |
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
||
|
min |
typ |
max |
||||
|
Collector Cutoff Current |
ICBO |
VCB=--40V, IE=0A |
--10 |
μA |
||
|
Emitter Cutoff Current |
IEBO |
VEB=--4V, IC=0A |
--10 |
μA |
||
|
DC Current Gain |
hFE |
VCE=--2V, IC=--270mA |
150 |
450 |
||
|
Gain-Bandwidth Product |
fT |
VCE=--10V, IC=--1A |
230 |
MHz |
||
|
Output Capacitance |
Cob |
VCB=--10V, f=1MHz |
115 |
pF |
||
|
Collector-to-Emitter Saturation Voltage |
VCE(sat) |
IC=--6A, IB=--300mA |
--250 |
--500 |
mV |
|
|
Base-to-Emitter Saturation Voltage |
VBE(sat) |
IC=--6A, IB=--300mA |
--1.2 |
V |
||
|
Collector-to-Base Breakdown Voltage |
V(BR)CBO |
IC=--100μA, IE=0A |
--50 |
V |
||
|
Collector-to-Emitter Breakdown Voltage |
V(BR)CEO |
IC=--1mA, RBE=∞ |
--50 |
V |
||
|
Emitter-to-Base Breakdown Voltage |
V(BR)EBO |
IE=--100μA, IC=0A |
--6 |
V |
||
|
Turn-On Time |
ton |
See specified Test Circuit. |
40 |
ns |
||
|
Storage Time |
tstg |
240 |
ns |
|||
|
Fall Time |
tf |
22 |
ns |
|||
